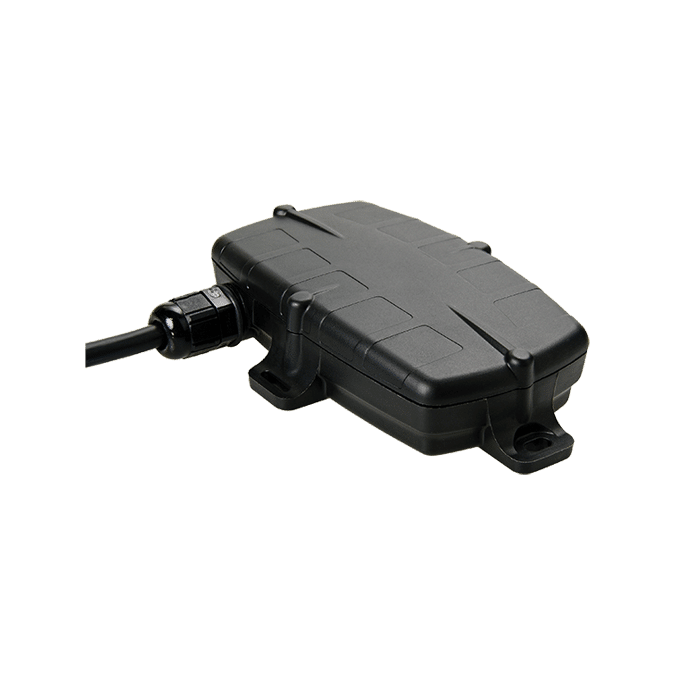

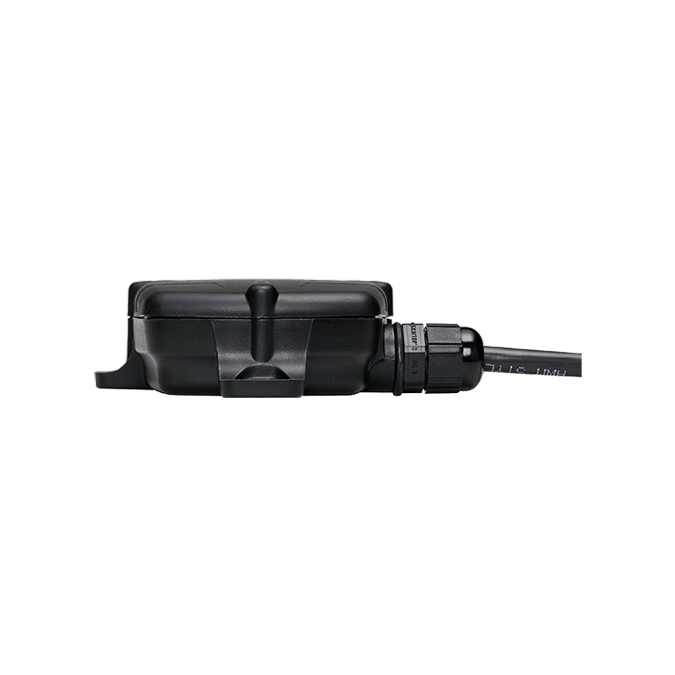

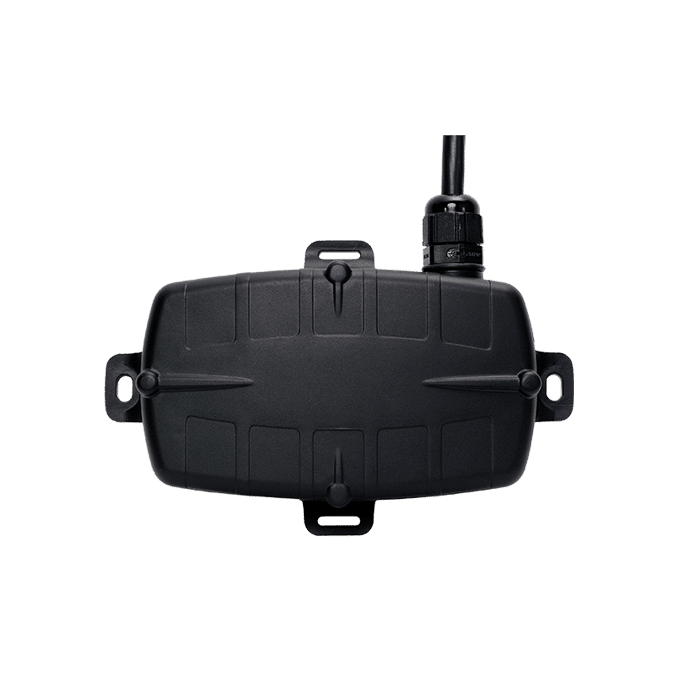

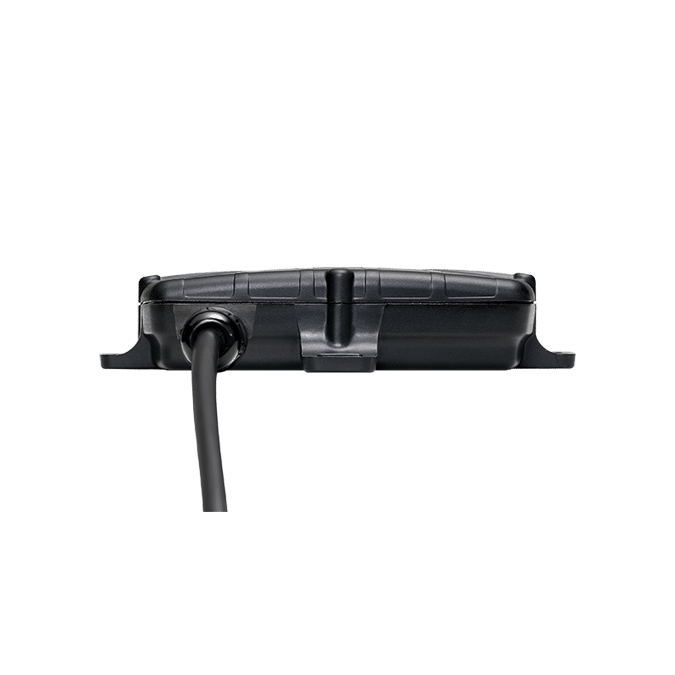

G70 BLE

Rugged and robust vehicle, trailer, or heavy equipment tracking device with inputs/outputs, remote immobilization for fleet management, equipment monitoring, driver ID, theft recovery, and more

  • High-performance, high-precision GPS tracking device
  • Waterproof and ultra-rugged (IP68)
  • Wire into power for real-time tracking
  • Bluetooth® gateway to report on BLE tags and sensors, wireless Driver ID
  • 1 x Ignition Digital Input, 3 x Digital Inputs, 1 x Analog Input, 1 x Switched Ground Digital Output, Switched Power Out
  • Supports Accident Detection, Driver ID, Driver Behavior, Remote Immobilization
  • Backup battery in case of loss of power or tampering



This device is designed, developed, and manufactured by Digital Matter

G70 BLE Features

Adaptive Tracking Icon. - Black

Asset Visibility

Monitor the location and movement of your assets in real-time.

Adaptive Tracking Icon. - Black

Waterproof and Ultra-Rugged

Ultra-rugged and waterproof IP68 rated housing ensures the G70 can withstand impact, fine dust, and brief submersion.

Asset Recovery

Activate real-time tracking for asset retrieval in case of loss or theft.

Accident & Rollover Detection

Set up alerts for accidents and rollovers, activated by significant changes in velocity and orientation.

Driver ID Options

Configure Bluetooth®, RFID reader, iButton®, or Wiegand interface for Driver ID.

Driver Safety & Behavior

Monitor speeding, harsh acceleration, braking, cornering, and more to improve safety and prevent unnecessary wear on vehicles.

Remote Immobilization

Digital outputs can be connected to a relay to enable remote immobilization of vehicles and equipment in the case of theft, abuse or unauthorized usage.

Geofencing Icon - Black

Onboard Geofencing

Create custom geofences and alerts if an asset enters or leaves specific locations. Geofences can also be downloaded directly to the device for enhanced location-based behaviors.

Flexible Input Monitoring

Interface with a range of devices and switches for seatbelt detection, duress and panic buttons, lights, in-cab warning buzzers, and more.

Backup Battery

Features a LiPo internal backup battery pack in case of loss of power or tampering.

White Label Icon - Black

White-Label Ready

Non-branded housing for seamless deployments under your own brand.

Settings Icon - Black

Highly Configurable

Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application.

G70 BLE Resources

Explore our comprehensive knowledge base to configure, connect, and install the G70 BLE.



i

Getting Started Guide

Get started with the G70 BLE.

i

Datasheet

View and download the G70 BLE datasheet.

i

Wire Definition

The G70 BLE comes with a 10 wire, 1m long harness.
