Oyster3 LoRaWAN®

LoRaWAN®
Rugged battery-powered GPS tracker for high-precision outdoor asset tracking on LoRaWAN networks.
  • Powered by 3 x AA user-replaceable batteries with 10+ years battery life
  • Location via GNSS
  • Intelligent power management and battery life monitoring
Global Connectivity

Global Connectivity

Highly sensitive radio transceiver is available in a single multiband device. Both 868 and 902 – 928 MHz supported.

High Precision GPS

High Precision GPS

GPS, GLONASS, Galileo, QZSS positioning systems are used simultaneously for enhanced accuracy and faster fixes.

'Deploy Once' Battery Life

'Deploy Once' Battery Life

Powered by 3 x AA Off-the-Shelf Lithium or Lithium Thionyl Chloride (LTC) batteries with over 10 years of battery life. Periodic battery status uplinks give a breakdown of power use.


Rugged & Weatherproof

Rugged & Weatherproof

Ultra-rugged and waterproof IP68 and IK07-rated housing ensures the Oyster3 LoRaWAN can withstand impact, fine dust, and brief submersion.

Periodic or Movement-Based

Periodic or Movement-Based

Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.


Flexible Configuration

Flexible Configuration

Configure device parameters such as heartbeat rate, movement and accelerometer settings, and more to fit any tracking application. Manage device firmware updates and parameters via DMLink provisioning tool.

Integration

Integration

Easy integration with comprehensive documentation and a flexible and open payload format.

Global Support

Global Support

Experienced support engineers for hardware, software, configuration, and integration guidance.

  • LoRaWAN
  • Highly sensitive radio transceiver is available in a single multiband device. Both 868 and 902 - 928 MHz supported.

  • Regions
  • AU915
    AS923-1
    AS923-2
    AS923-3
    AS923-4
    EU868
    IN865
    KR920
    RU864
    US915

  • GNSS Module
  • Sony CXD5605

  • Environment
  • Outdoor

  • Constellations
  • Concurrent GPS, GLONASS, Galileo, BeiDou

  • Low Noise Amplifier
  • GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA) allowing operation where other units fail.

  • Location Accuracy*
  •  ~1m CEP



     * Positioning accuracy specifications are provided by the module supplier and reflect ideal conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy.

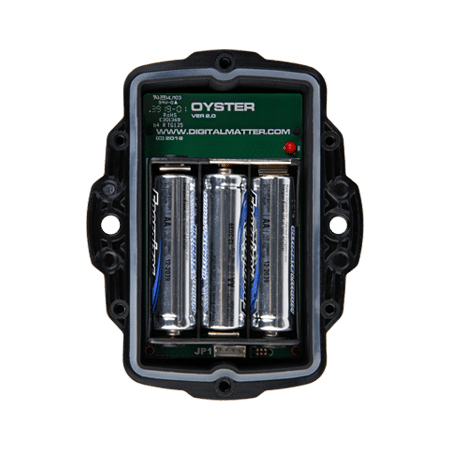

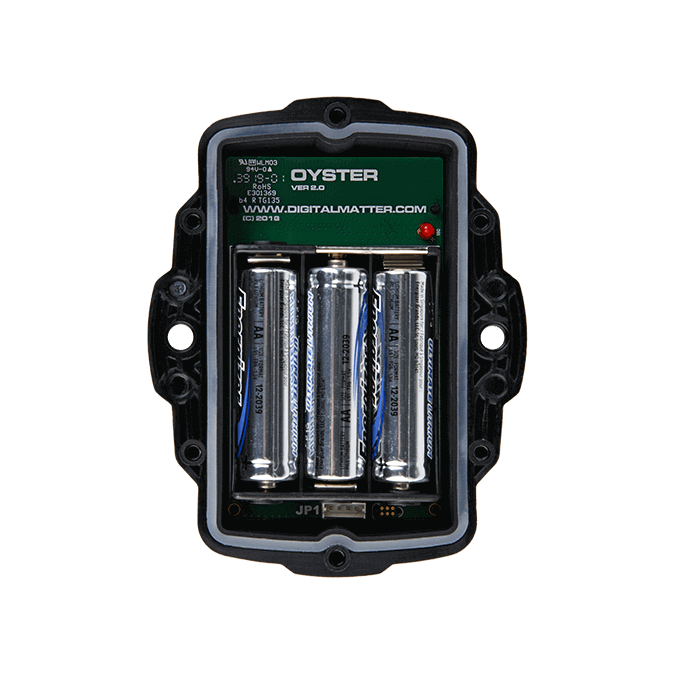

  • User-Replaceable Batteries
  • 3 x AA. Batteries not included.
    Widely available at most hardware or retail locations.

  • Supported Battery Types
  • Lithium or Lithium Thionyl Chloride (LTC)
    Battery selection is very important. Follow this link to learn more. Please dispose of Lithium batteries in a safe and responsible manner.

  • Battery Life Estimates*
  • Once Daily location updates – 10 years
    Movement-Based location updates** – 2.5 years
    Hourly location updates – 2 years

  • Sleep Current
  • <10uA
    Average current in lowest power state.



    * Battery life estimates are influenced by several factors including temperature, installation and orientation of the device, battery selection, the frequency of location updates, network coverage, sensor integrations, peripherals, accelerometer settings, and more. Battery life calculators are available at support.digitalmatter.com.

    ** Movement-based estimates are based on 2 hours of movement, occurring 5 days a week, with default trip tracking parameters (location updates every 3 minutes and uploads every 30 minutes). Devices can be configured to provide more frequent location updates when the asset is in motion which will impact battery life.

  • Dimensions
  • 108 x 86 x 30 mm (4.25 x 3.39 x 1.18 in)

  • Housing
  • Non-branded nylon glass housing is suitable for white labeling.

  • IP/IK Rating
  • Ultra-rugged and waterproof IP68 and IK07-rated housing ensures the device can withstand impact, fine dust, and brief submersion.

  • Installation
  • Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws provided.

  • Temperature Range
  • Operating: -30°C to +60°C
    Recommended Storage: 10°C to 30°C, Humidity 30%.
    Store in a cool, dry place.

  • GPS Antenna
  • Internal

  • RF Antenna
  • Internal

  • 3-Axis Accelerometer
  • 3-Axis accelerometer to detect movement.

  • Diagnostic LED
  •  Diagnostic LED indicates operation status.

  • Onboard Speed and Heading
  • Current speed and heading is reported with each position update.

  • Adaptive Tracking
  • Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.

  • Battery Life Monitoring
  • Periodic battery status uplinks give a breakdown of power use.

  • Geofence Alerts
  • The server can use device location to create geofences and alerts if an asset enters or leaves designated locations.

  • Sleep Mode
  • Stationary devices enter sleep mode until movement occurs to conserve battery life and optimize data usage.

  • Flexible Configuration
  • Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application.

  • Configuration App
  • Manage device firmware updates and parameters via DMLink provisioning tool. Some parameters can be changed via downlink.

  • Third-Party Integration
  • Easy integration with comprehensive documentation and a flexible and open payload format.

  • Data Security
  • LoRaWAN® networks use AES-128 Encryption so your data is protected.

Please view our knowledge base for regulatory and network certifications.
