Yabby Edge LoRaWAN®

Highly sensitive radio transceiver is available in 868 or 902 - 928 MHz versions.

AU915
AS923-1
AS923-2
AS923-3
AS923-4
EU868
IN865
KR920
RU864
US915

Semtech LR1110

Indoor/Outdoor

Concurrent GPS, BeiDou

GNSS almanac data for greater sensitivity and position accuracy.

GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA) allowing operation where other units fail.

Indoor asset location using Wi-Fi access point scanning.

Asset location is resolved using Digital Matter’s Location Engine.

2 x AAA. Batteries not included.
Widely available at most hardware or retail locations.

Lithium
Battery selection is very important. Follow this link to learn more. Please dispose of Lithium batteries in a safe and responsible manner.

Once Daily location updates – 12 years
Movement-Based location updates** – 1 year
Hourly location updates – 3 years

<10uA
Average current in lowest power state.

* Battery life estimates are influenced by several factors including temperature, installation and orientation of the device, battery selection, the frequency of location updates, network coverage, sensor integrations, peripherals, accelerometer settings, and more. Battery life calculators are available at support.digitalmatter.com.

** Movement-based estimates are based on 2 hours of movement, occurring 5 days a week, with default trip tracking parameters (location updates every 3 minutes and uploads every 30 minutes). Devices can be configured to provide more frequent location updates when the asset is in motion which will impact battery life.

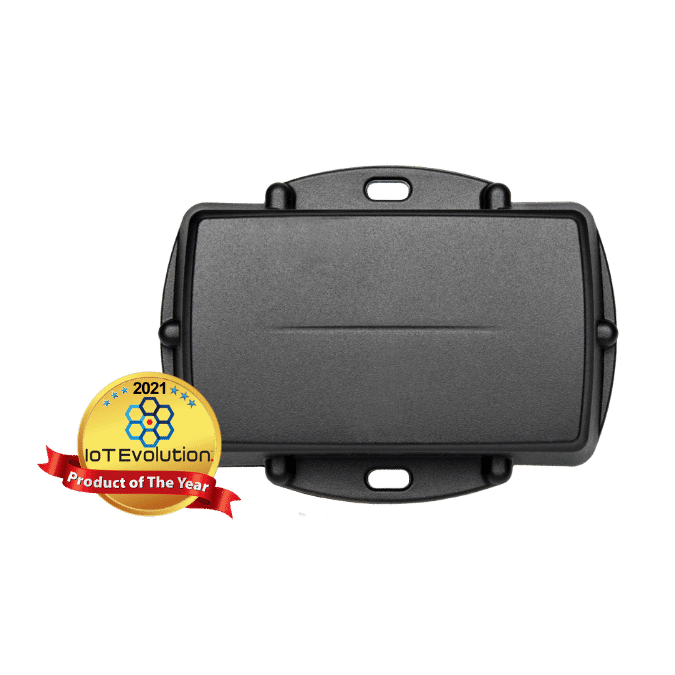

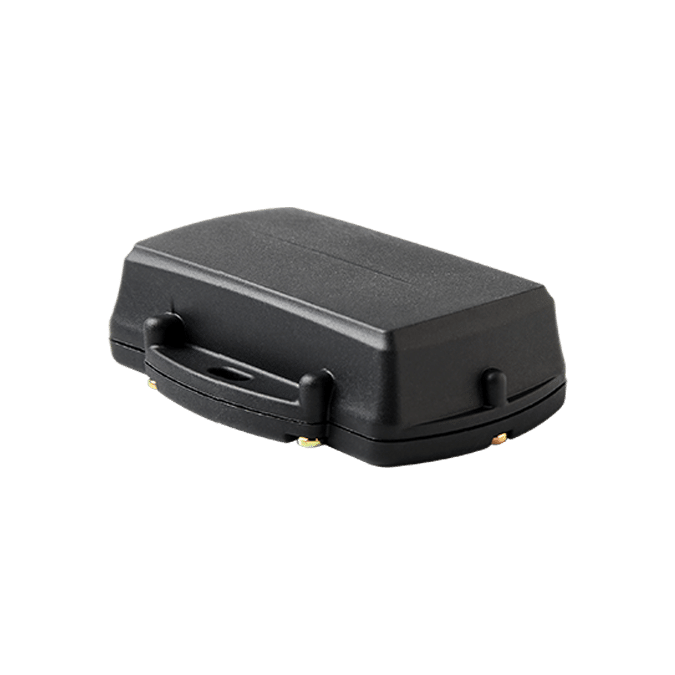

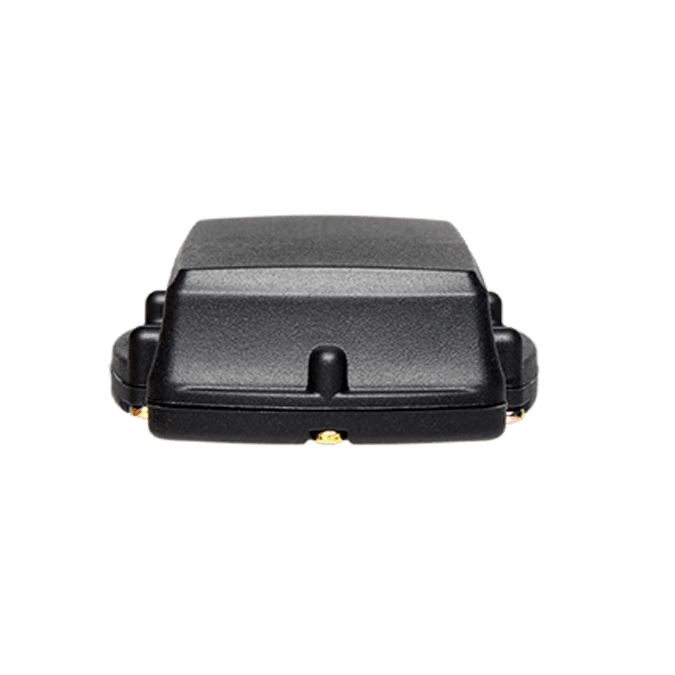

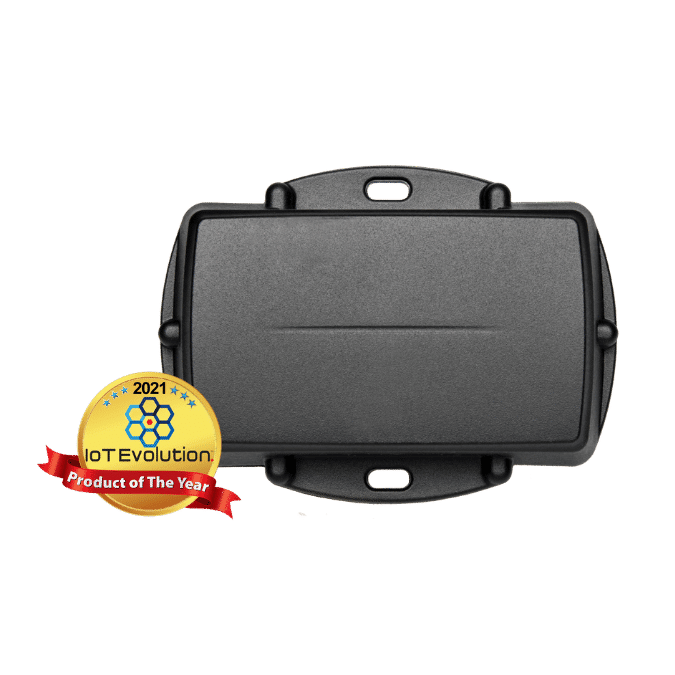

Standard Housing - 84 x 63 x 24 mm (3.31 x 2.48 x 0.94 in)

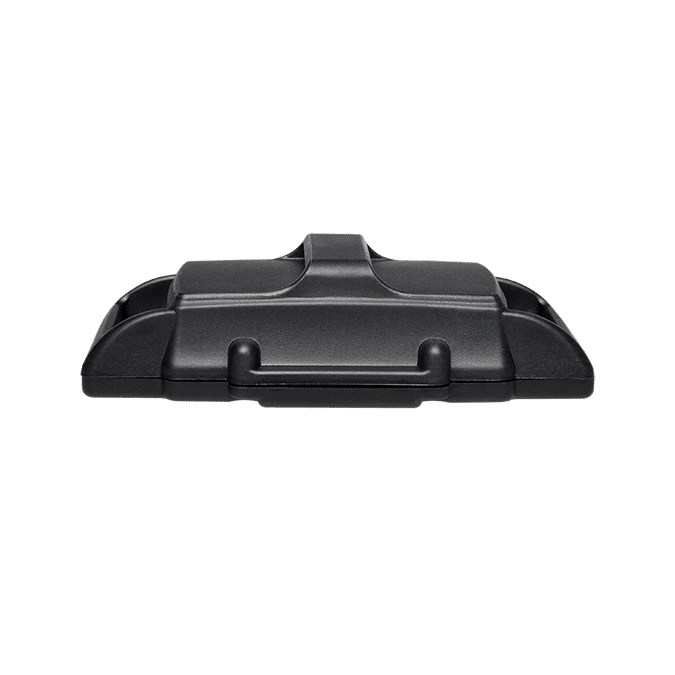

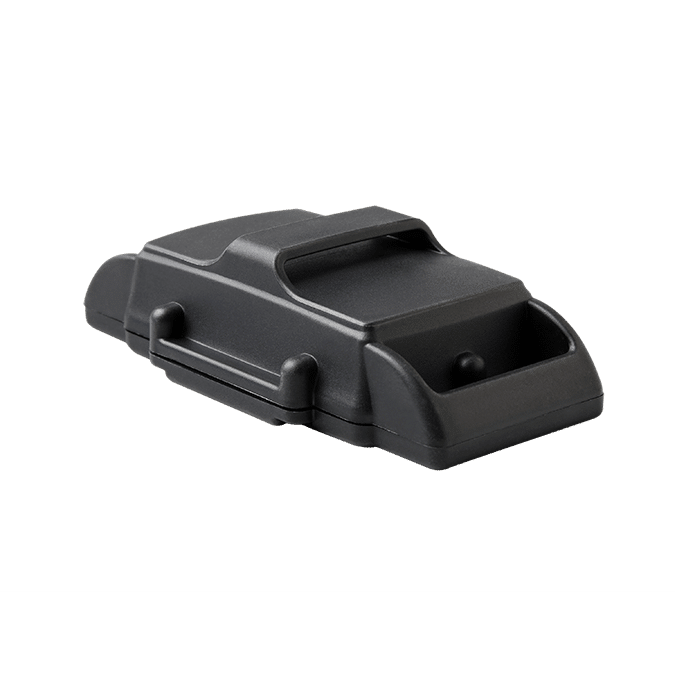

Livestock Collar Housing - 109 x 60 x 30 mm (4.29 x 2.36 x 1.18 in)

Non-branded nylon glass housing is suitable for white labeling.

Ultra-rugged and waterproof IP68 and IK06-rated housing ensures the device can withstand impact, fine dust, and brief submersion.

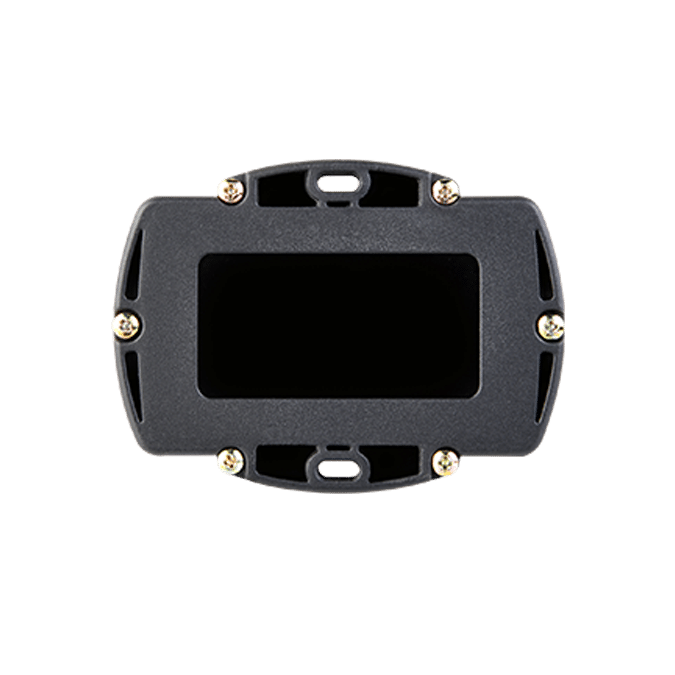

Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws provided. Collar housing available for securing device to livestock.

Operating: -30°C to +60°C
Recommended Storage: 10°C to 30°C, Humidity 30%.
Store in a cool, dry place.

Internal

Internal

Internal

3-Axis accelerometer to detect movement.

Diagnostic LED indicates operation status.

Scanning technology used on this device does not return speed or heading.

Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.

Periodic battery status uplinks give a breakdown of power use.

The server can use device location to create geofences and alerts if an asset enters or leaves designated locations.

Stationary devices enter sleep mode until movement occurs to conserve battery life and optimize data usage.

Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application.

Manage device firmware updates and parameters via DMLink provisioning tool. Some parameters can be changed via downlink.

HTTPS Webhook

LoRaWAN® networks use AES-128 Encryption so your data is protected.

Two-year manufacturer’s warranty. Exclusions apply.
